AUTOSTONE USA SUBARU BRAND COMPLIANT TILE MATERIALS
Subaru
AutoStone USA tiles are brand-compliant for the
Subaru Love Promise Brand Experience program
Subaru
AutoStone USA tiles are brand-compliant for the
Subaru Love Promise Brand Experience program
The Subaru Love Promise Brand Experience
Learn how AutoStone helps Subaru dealers show love and respect with every interaction.
SHOWROOM
AutoStone CT-1 (Subaru Showroom Tiles) Reduce Stains and Clean Easier.
The brightfinish surface aids them in their cleaning practices and enhances your showroom appearance. AutoStone tile is much easier to clean for Subaru dealers. AutoStone brightfinish eliminates* concerns with your tile showing haze, dirt, grime, etc., (*with proper cleaning practices). Tile with brightfinish does not easily stain, especially with tire-bright, or similar tire dressing materials. The result: better appearing Subaru stores, happier dealers!
AutoStone CT-1 (Subaru Showroom Tiles) Reduce STF Risk.
The DCOF (dynamic coefficient of friction) rating for this tile increases with this finish. Our brightfinish embeds micro-granule traction elements which increase the slip-resistance. The result: Subaru stores with floors that reduce STF (slip, trip, and fall) risk in showrooms. Dealers, employees and customers benefit!
The Subaru Love Promise is the Subaru vision to show love and respect to all people at every interaction. Your Subaru retail showroom is where this dedication starts and AutoStone is your partner to build a better retail showroom environment. Our program supports Subaru dealers with the highest quality, most affordable and comprehensive floor tile system for your dealership project. Affordable, high-quality, and easy to do business with are what you will experience with AutoStone. Call us today to support your project.

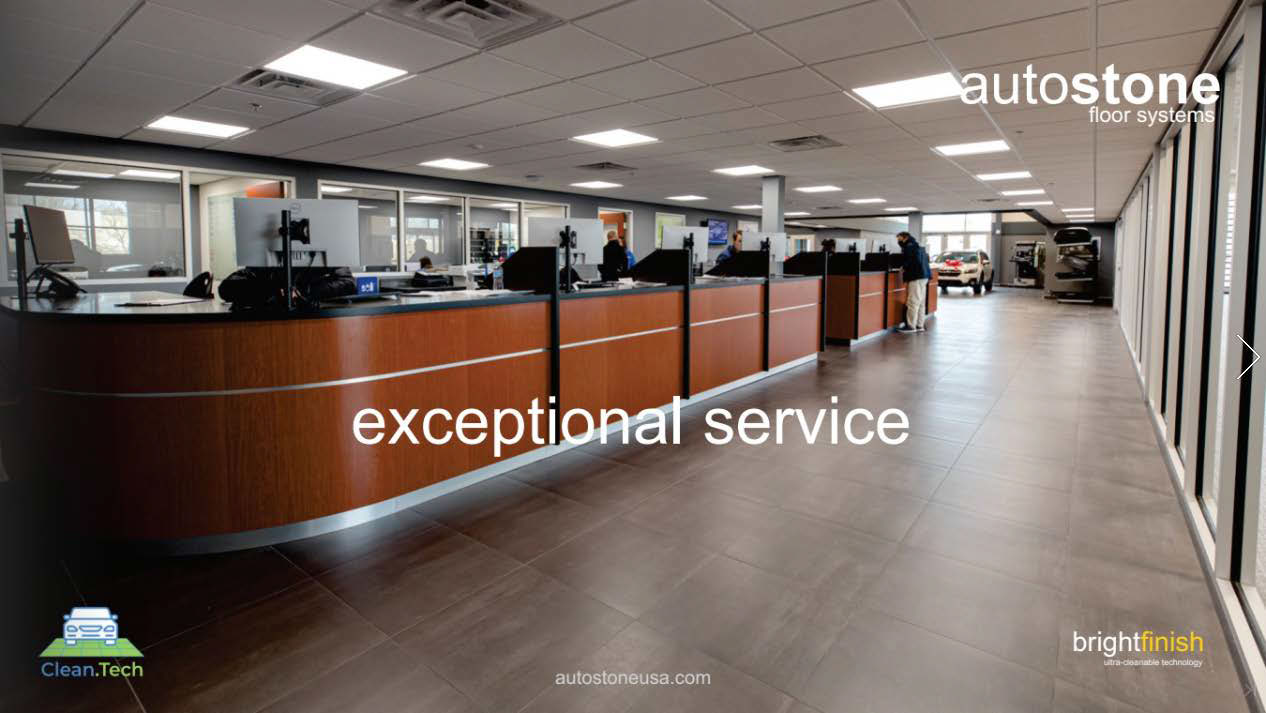

SERVICE RECEPTION
The reality of your Subaru service department is that your dealership has both employees and customers exposed to surface contaminants on your floor from the start of business till close. Your service drive has customers arriving in your service reception area with vehicles tracking water, oil, grease, and other contaminants. The question for a Subaru dealer is; “what is the best floor surface to addresses the reality of STF (slip, trip and fall) risk we face in the service drive and workshop space?” AutoStone provides a wide range of surface structure designs with unique performance features to help you better manage STF events. Build better Subaru service drives and reception areas with AutoStone technology that delivers Subaru dealers better results. See how one Subaru customer “how thoughtful!” when she stepped out her Subaru vehicle onto an AutoStone driveseries service drive.
SERVICE WORKSHOP
AutoStone promotes that better working environments promote better results, happier employees, and greater customer satisfaction. AutoStone was founded on the notion that “Your shop is an extension of your showroom”, because each positive customer experience leads to increased service revenue and future vehicle sales. Industry research indicates that professional-looking, clean, and tidy service departments improve CSI ratings while enhancing brand perception. AutoStone permanent workshop floor systems will provide your Subaru dealership a beautiful, durable, and clean appearing Subaru service facility. AutoStone delivers permanence, performance, and appearance. Never resurface your workshop again, AutoStone once, AutoStone forever.
CARE AND MAINTENANCE
Welcome to the AutoStoneUSA “Culture of Clean” program which was developed to help your dealership with the best cleaning practices, methods and processes possible. The Subaru Love Promise Brand Experience program includes AutoStoneUSA materials in your back offices, service drive and possibly your workshop.
Automotive retail and service facilities include two distinct operations under one roof. The nature of the automotive dealership includes spaces where vehicles are driven on floors which track onto the floor all type of elements such as oil, grease, asphalt and other contaminants. In the service drive and workshop, you have a greater exposure to the elements which requires a higher degree of cleaning vigilance. You also service ICE and EV vehicles which have chemicals and liquids which also can contaminate the floors in these areas. We are here to help you keep these areas looking clean, but also safer to walk on for both customers and employees.
AutoStoneUSA Commits to Subaru and Subaru Love Promise Program
AutoStoneUSA collaborates with Subaru to assure accuracy and brand program alignment as part of the Subaru Love Promise Experience program. Elevate your automotive facility by downloading AutoStone’s latest Subaru brand compliant tile guidebook.

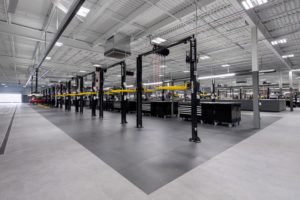

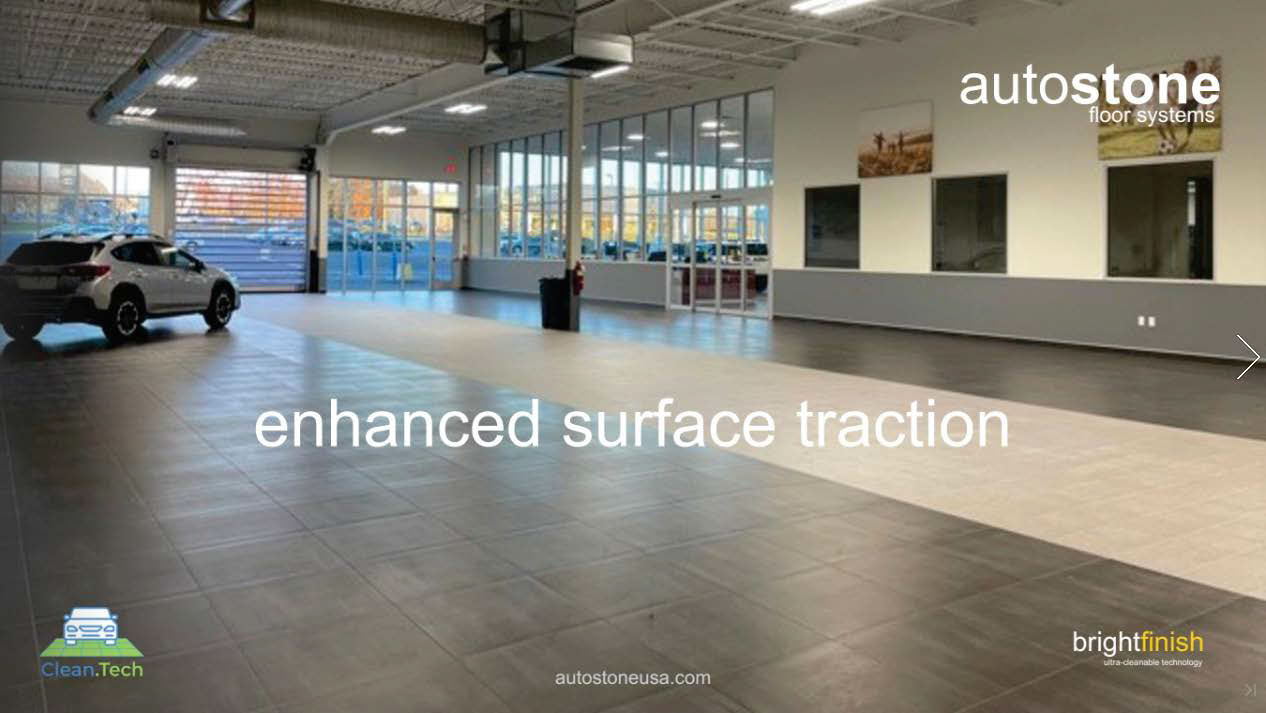

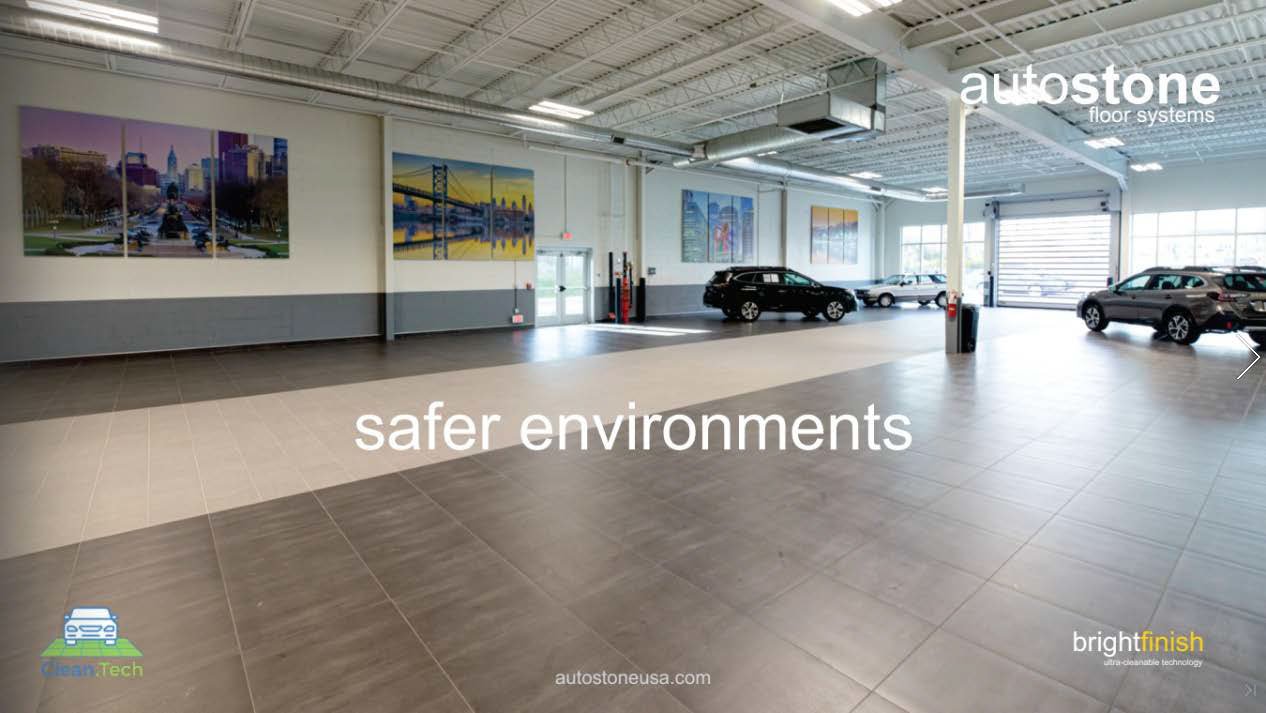

AutoStoneUSA Subaru Installation Images

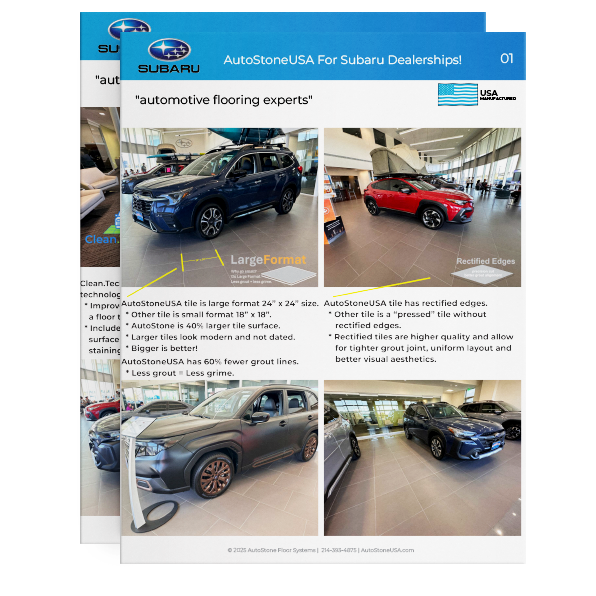

Large Format Tiles & Rectified Edges From AutoStoneUSA Make Subaru Facilities Better!
Get better retailing results with AutoStoneUSA’s Subaru CT-1 Showroom Tile! Download AutoStoneUSA’s Subaru Program Explainer & Installation profile to how AutoStoneUSA does it better.

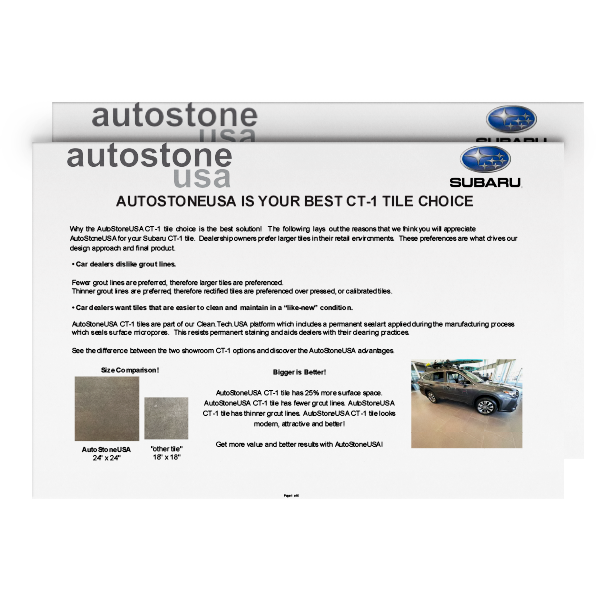

AutoStoneUSA Subaru Advantage versus "Other Tile" Competitors
Modern, fresh, and better retailing results with AutoStoneUSA’s large format CT-1 Showroom 24″ x 24″ tile. Don’t build stale, small, and dull! There is a BIG difference! Dealership owners prefer larger tiles in their retail environments. Learn about the different with our showroom guide!
AutoStoneUSA Subaru

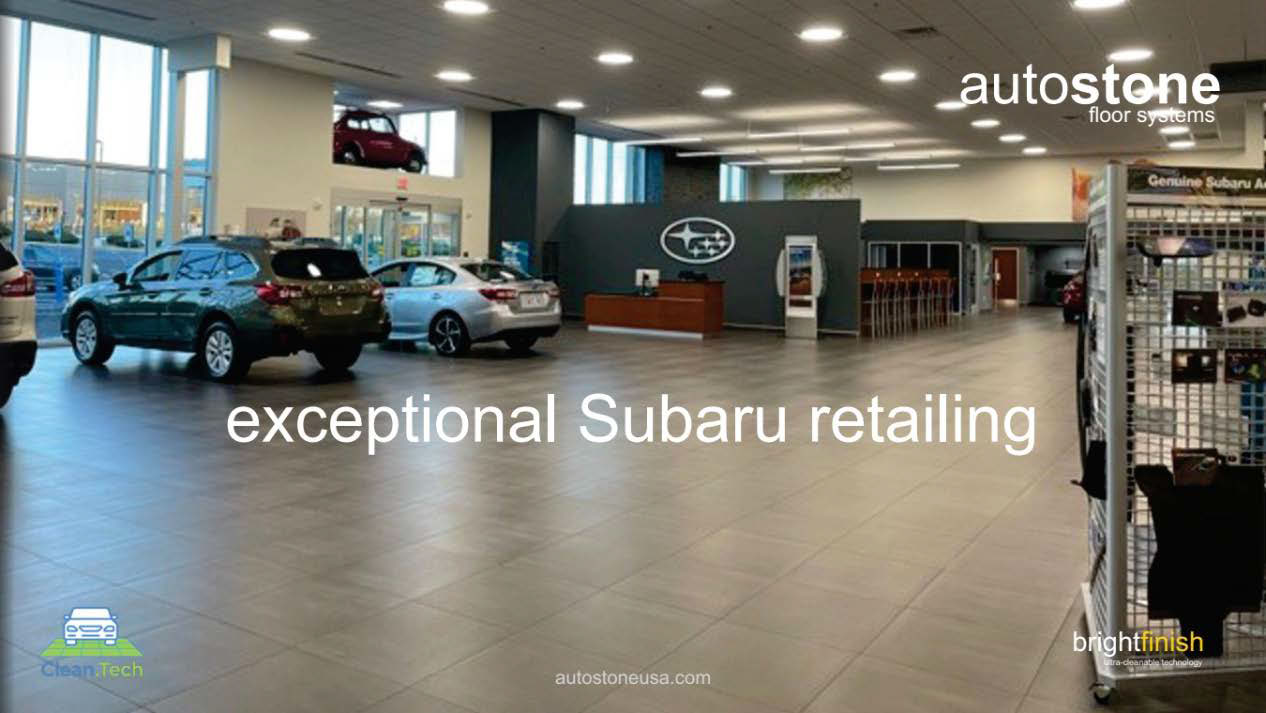

Exceptional Subaru Retailing!

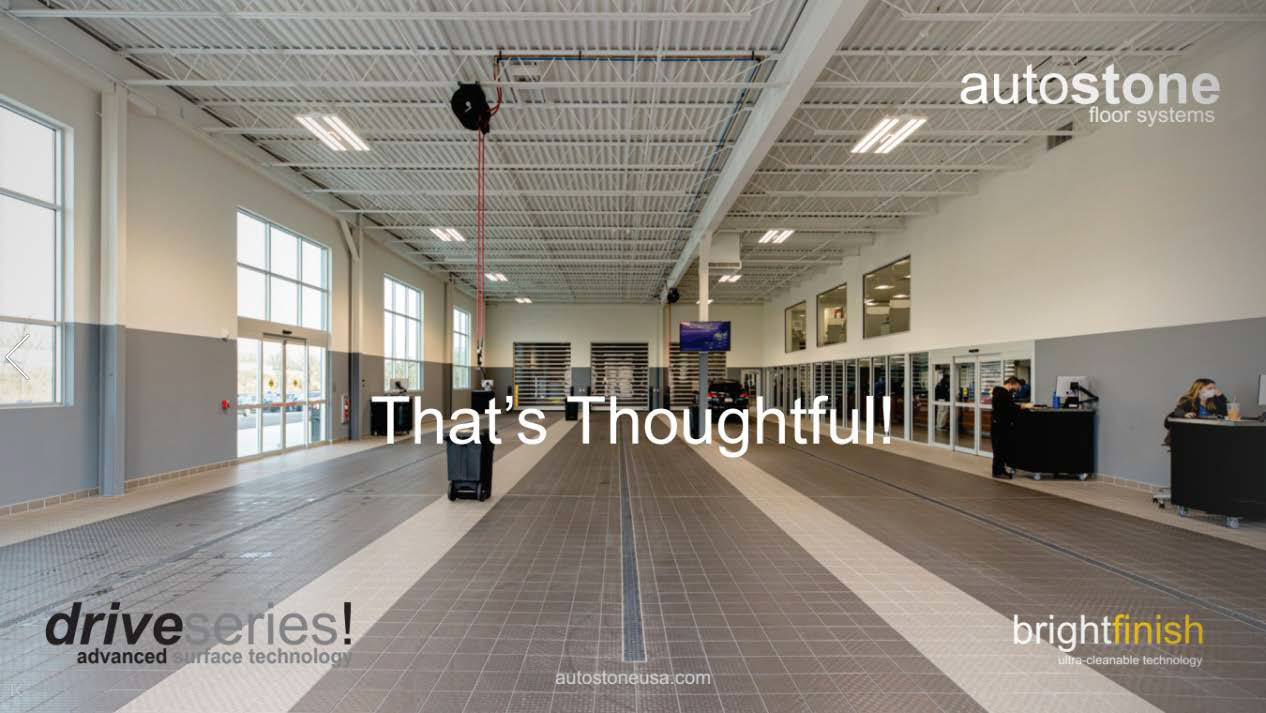

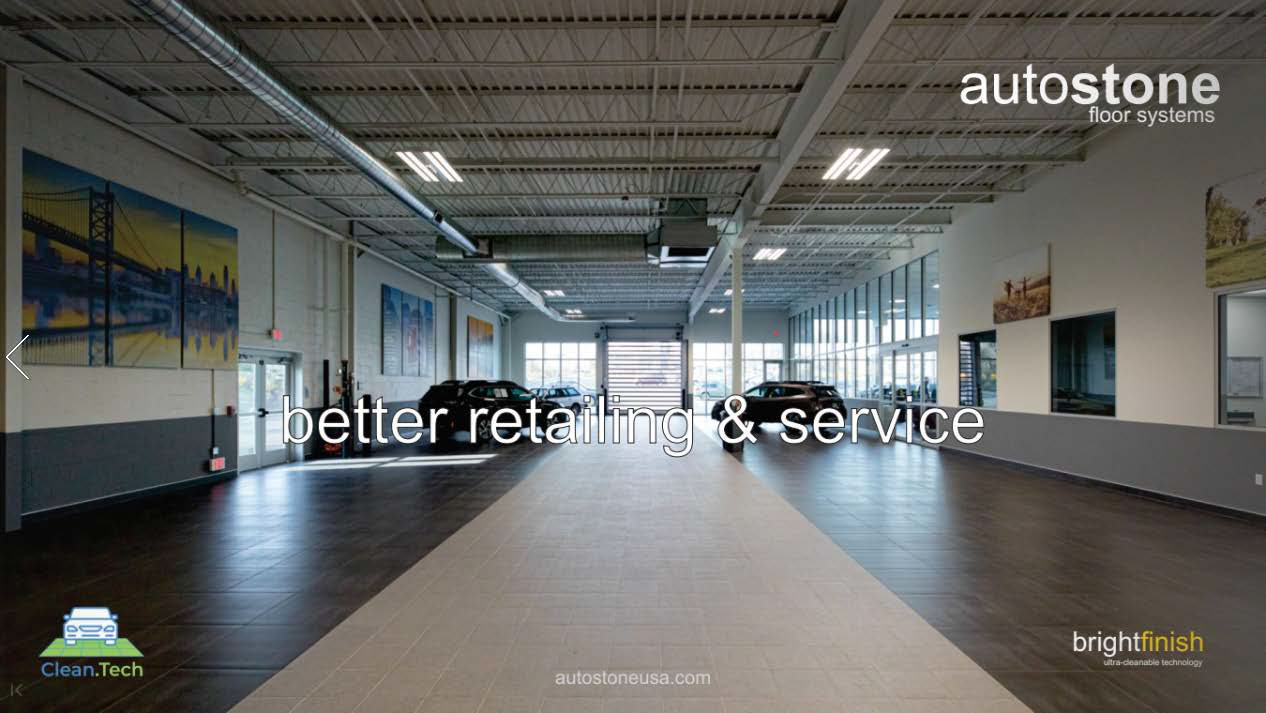

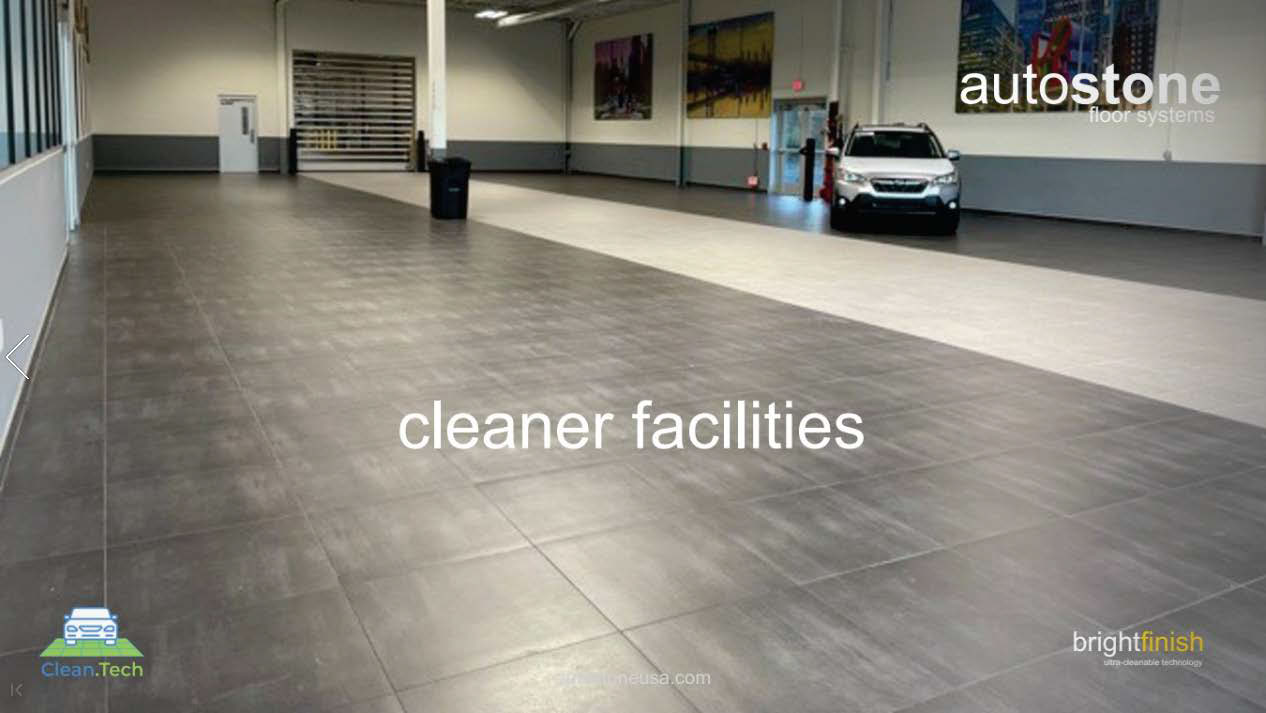

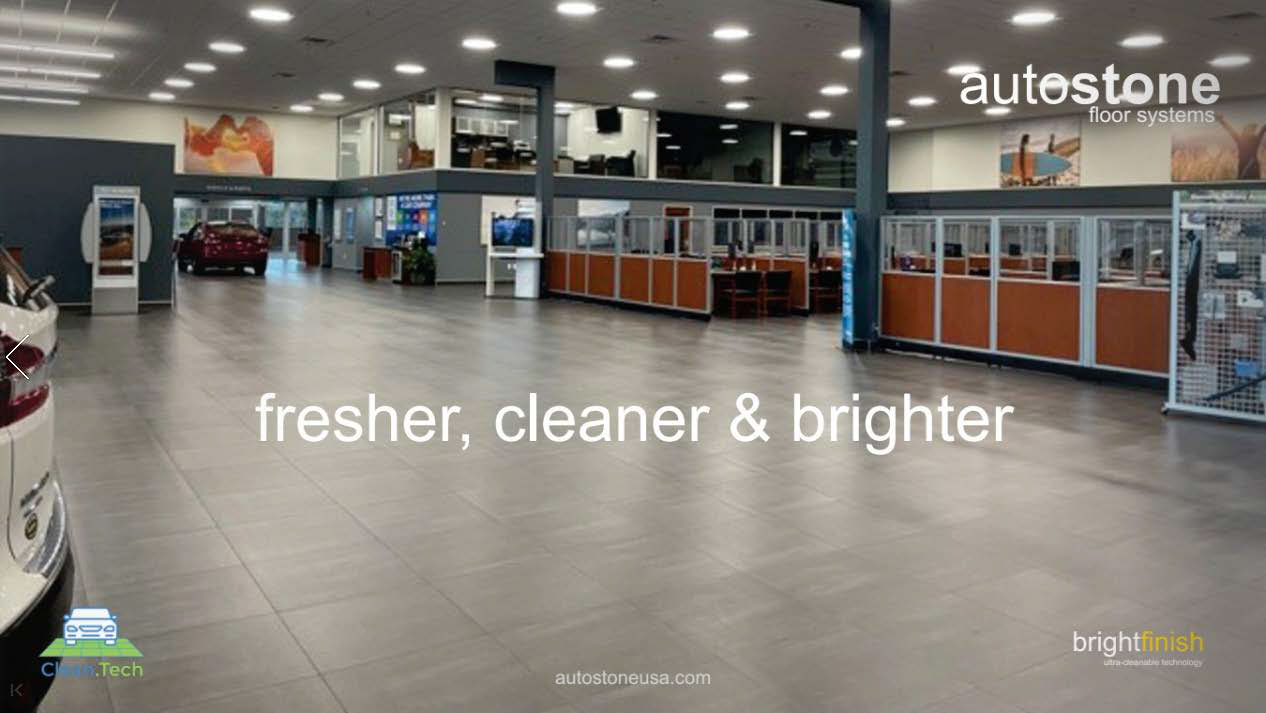

This Subaru retail project profile demonstrates the impact of AutoStoneUSA’s tile materials. When Subaru retail facilities choose AutoStoneUSA your dealer can benefit from enhanced surface traction, fresher, cleaner, and brigther facilities, and better customer shoe to tile experiences.
AutoStoneUSA Subaru Videos
Subaru Brand Compliant Program
Subaru loves AutoStone! Here are your Subaru brand tiles products! Now Made in the USA!
CT-1 & CWT-1 CHARCOAL
SHOWROOM, CUSTOMER CONTACT AREAS, RESTROOM, & TECH WALLS
Technical Specifications
Series: Clean.Tech.USA
Color: Charcoal
Finish: Honed | Natural
Size: 24″x 24″* (U.S. Nominal Dimension)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
CT-1: Showroom & Customer Contact Areas
CWT-1: Restroom & Tech Wall Tile
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.1 Interior Dry (ID)
4.1.2 Interior Wet (IW)
Features & Benefits
MADE IN USA
CWT-2 DEEP GREY - CHARCOAL
RESTROOM & TECH WALLS
Technical Specifications
Series: Premier
Color: Deep Grey – Charcoal
Finish: Polished
Size: 24″x 24″* (U.S. Nominal Dimension)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
CWT-2: Restroom & Tech Wall Tile
Environment of Use
Surface Traction Conforms To:
This product meets or exceeds all standards described in ANSI A137.1.
CWT-2 ALT GREY
RESTROOM & TECH WALLS
Technical Specifications
Series: Premier
Color: Grey
Finish: Polished
Size: 24″x 24″* (U.S. Nominal Dimension)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Restroom & Tech Wall Tile
Environment of Use
Surface Traction Conforms To:
This product meets or exceeds all standards described in ANSI A137.1.
CWT-2 ALT GREY
RESTROOM & TECH WALLS
Technical Specifications
Series: Premier
Color: Grey
Finish: Honed | Natural
Size: 24″x 24″* (U.S. Nominal Dimension)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Restroom & Tech Wall Tile
Environment of Use
Surface Traction Conforms To:
This product meets or exceeds all standards described in ANSI A137.1.
CWT-3 ALT Simply WHITE
RESTROOM & TECH WALLS
Technical Specifications
Series: WallTiles!
Color: Simply White
Finish: Satin
Size: 12″ x 24″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Restroom & Tech Wall Tile
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)
CWT-4 ALT STormy grey
RESTROOM & TECH WALLS
Technical Specifications
Series: WallTiles!
Color: Stormy Grey
Finish: Glossy
Size: 12″ x 24″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Restroom & Tech Wall Tile
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)
CWT-5 ALT SUBWAY
BRIGHT WHITE
RESTROOM & TECH WALLS
Technical Specifications
Series: WallTiles! – Subway
Color: Bright White
Finish: Glossy
Size: 03″ x 06″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Restroom & Tech Wall Tile
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)
CWT-6 ALT GRANITA GREY
RESTROOM & TECH WALLS
Technical Specifications
Series: WallTiles!
Color: Granita Grey
Finish: Satin
Size: 8″ x 8″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service & Tech Restroom Areas
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)
CWT-7 ALT ANTHRACITE GREY
RESTROOM & TECH WALLS
Technical Specifications
Series: WallTiles!
Color: Anthracite Grey
Finish: Satin
Size: 8″ x 8″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service & Tech Restroom Areas
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)
ALLOY GREY
DRIVESERIES8USA
Technical Specifications
Series: DriveSeries8USA
Color: Alloy Grey
Finish: Super.Grip3L.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimension)
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
SMOKE GREY
DRIVESERIES8USA
Technical Specifications
Series: DriveSeries8USA
Color: Smoke Grey
Finish: Super.Grip3L.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimensions)
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
CARBON/GENESIS BLACK
DRIVESERIES8USA
Technical Specifications
Series: DriveSeries8USA
Color: Carbon/Genesis Black
Finish: Super.Grip3L.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimensions)
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
ALLOY GREY
ESHOP8USA
Technical Specifications
Series: eShop8USA
Color: Alloy Grey
Finish: Super.Grip.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimension)
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
SMOKE GREY
ESHOP8USA
Technical Specifications
Series: eShop8USA
Color: Smoke Grey
Finish: Super.Grip.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimension)
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
CARBON/GENESIS BLACK
ESHOP8USA
Technical Specifications
Series: eShop8USA
Color: Carbon/Genesis Black
Finish: Super.Grip.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimension)
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
ALLOY GREY
DRIVESERIES12USA
Technical Specifications
Series: DriveSeries12USA
Color: Alloy Grey
Finish: Traction3L.Brightfinish
Size: 12″x 12″* (U.S. Nominal Dimension)
11 7/8" x 11 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
CARBON BLACK
DRIVESERIES12USA
Technical Specifications
Series: DriveSeries12USA
Color: Carbon Black
Finish: Traction3L.Brightfinish
Size: 12″x 12″* (U.S. Nominal Dimension)
11 7/8" x 11 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
ALLOY GREY
ENVIROSHOP12USA
Technical Specifications
Series: Enviroshop12USA
Color: Alloy Grey
Finish: Traction.Brightfinish
Size: 12″x 12″* (U.S. Nominal Dimension)
11 7/8" x 11 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
Features & Benefits
MADE IN USA
SMOKE GREY
ENVIROSHOP12USA
Technical Specifications
Series: Enviroshop12USA
Color: Smoke Grey
Finish: Traction.Brightfinish
Size: 12″x 12″* (U.S. Nominal Dimension)
11 7/8" x 11 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
Features & Benefits
MADE IN USA
CARBON BLACK
ENVIROSHOP12USA
Technical Specifications
Series: Enviroshop12USA
Color: Carbon Black
Finish: Traction.Brightfinish
Size: 12″x 12″* (U.S. Nominal Dimension)
11 7/8" x 11 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
Features & Benefits
MADE IN USA
FLOOR & WALL PANELS
GREY CONCRETE
RESILIENT ARMOUR
Technical Specifications
Series: Resilient Armour
Color: Grey Concrete
Size: 18″x 36″ Panel
Thickness: 3mm
Facility Location
Facility Locations:
Parts
Storage Areas
Janitorial
Lunch & Break Rooms
Tech Locker Room
(Floors & Walls)
Wainscoting for Hallways,
WorkShop Areas & All Back-Office Areas
Features & Benefits
SURFACE
CAMOUFLAGE
SCRATCH RESISTANT
SURFACE
CHEMICAL RESISTANT
SURFACE
IMPACT
GUARD SURFACE
Learn more about Resilient Armour
LVT large format panels by clicking on the logo below.
FLOOR & WALL PANELS
GREY CONCRETE
RESILIENT ARMOUR
Technical Specifications
Series: Resilient Armour
Color: Deep Concrete
Size: 18″x 36″ Panel
Thickness: 3mm
Facility Location
Facility Locations:
Parts
Storage Areas
Janitorial
Lunch & Break Rooms
Tech Locker Room
(Floors & Walls)
Wainscoting for Hallways,
WorkShop Areas & All Back-Office Areas
Features & Benefits
SURFACE
CAMOUFLAGE
SCRATCH RESISTANT
SURFACE
CHEMICAL RESISTANT
SURFACE
IMPACT
GUARD SURFACE
Learn more about Resilient Armour
LVT large format panels by clicking on the logo below.
Ready to Reserve Subaru Materials?
AutoStone offers the best price for your tile program and guaranteed on-time delivery.

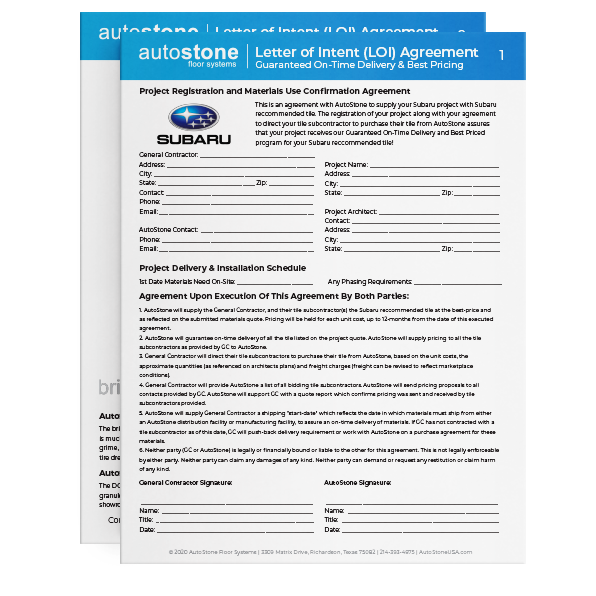

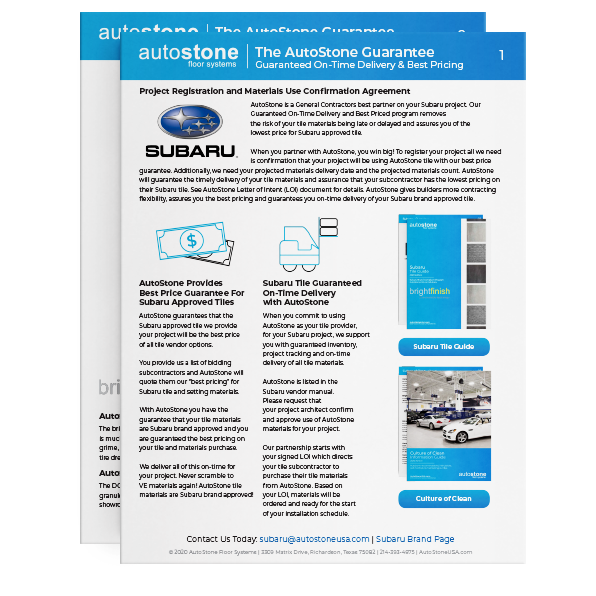

AutoStoneUSA Subaru Documents
Why AutoStoneUSA Are Subaru Experts
Precise Grout Alignment with AutoStone
Exceptional quality is assured with every AutoStone produced and supplied Subaru tile. The Subaru showroom tiles are precisely rectified to +/- .5 mm tolerance to assure that your installation can achieve the tightest grout lines possible. The VE rating and color consistency is exceptional to deliver a better Subaru showroom look and appearance. AutoStone supplied service drive and workshop floor systems have a tight calibrated tolerance to assure tight grout alignment as well. Less grout = less grime. AutoStone is your best Subaru tile choice!
Best Price Guarantee Saves you money
AutoStone guarantees that our materials pricing will not be undersold! More importantly, we guarantee that our Subaru showroom tiles are “technical” grade porcelain, which is a much higher quality tile structure than printed graphics and/or printed finishes. Our materials are thicker, stronger, and more durable than any product approved for the Subaru program. When you factor-in all the costs, AutoStone will always prove to be your best price and best quality product. Request your Subaru pricing today, request your quote at: subaru@autostoneusa.com
Inventory, Materials and Logistics Experts
AutoStone is the nation’s automotive-industry floor system specialist. In addition to supporting Subaru, we support ten additional automotive brands. We inventory over one million square feet of brand specific floor tile. Not only do we have the largest domestic inventory in the country, we are also the best resource to support your project. With AutoStone, your Subaru dealership project will be supported with materials that are actually available, when you need them.
Showroom, Service and WorkShop Approved
AutoStone supplied showroom, service and workshop floor tiles are approved for use in your Subaru dealership. AutoStone showroom tiles are a required tile choice for your showroom. AutoStone driveseries, enviroshop and clinkershop (by Roeben) floor systems are also approved for use in your service drive and workshop as upgrade choices. When it comes to your service department, we always recommend a permanent floor system. AutoStone once, AutoStone forever is our motto. Build a better service facility that is a safer, cleaner, and a better environment to service Subaru vehicles. Avoid the never-ending cost of having to resurface your service drive and workshop. Instead, choose AutoStone Floor Systems for these important operational areas.
STF (slip, trip and Fall) Risk - Environments
AutoStone proposes our driveseries as one of our three workshop floor systems for Subaru service drive and workshop facilities. This service and workshop floor system has been successfully installed in a number of Subaru installations and Subaru dealers love the STF benefits, which reduce their exposure to customer and employee injury in the service drive and/or workshop.
Permanent Sealant Enhances Impervious surface
All three AutoStone service drive and workshop floor systems proposed for use in a Subaru dealership have our brightfinish technology. The brightfinish technology enhances our impervious tile surface with a permanent sealant baked-in during the manufacturing process. Permanent service drive and workshop floors can be kept in “like-new” condition for the life of the dealership with regularly scheduled and proper cleaning practices.
Competitor Products Darken over time
AutoStone service drive and workshop tiles are manufactured with our brightfinish to resist rubber-transfer, and surface stains. While other clinker tile manufacturers state that their tile will “naturally patina” over time, our workshop tiles can be kept clean and “like-new” with regularly scheduled and proper cleaning maintenance. AutoStone service and workshop floor systems are designed for the automotive service model marketplace.
AutoStone supports Subaru with culture of clean
Clean facilities are an essential Subaru brand requirement. A Subaru retail and service facility should reflect a clean upscale environment to reflect the quality of the Subaru brand. The showroom, service reception and service workshop are equally important in delivering exceptional service which caters to each Subaru customer. Floors should be clean, bright and be kept in a “like-new” condition for the life of the dealership. AutoStone floors are designed to help you keep and maintain the original appearance with regularly scheduled cleaning practices. Let AutoStone help you with your cleaning and maintenance program.
Subaru projects require a higher quality product combined with a higher construction skill-set and craftsmanship.
Tile Technical Documents
Tile Technical Documents
Point of Contact
Ready to Order? Give us a Call.
AutoStone:
214-393-4875
Email:
subaru@autostoneusa.com
