AUTOSTONE USA APPROVED GDSI 2.0 TILE PROVIDER
Hyundai
AutoStone USA is a Hyundai Strategic Partner
See our NEW LARGE FORMAT CT-1 24″ x 48″ Tile!
New 24" x 48" CT-1 Size
Approved for your Showroom

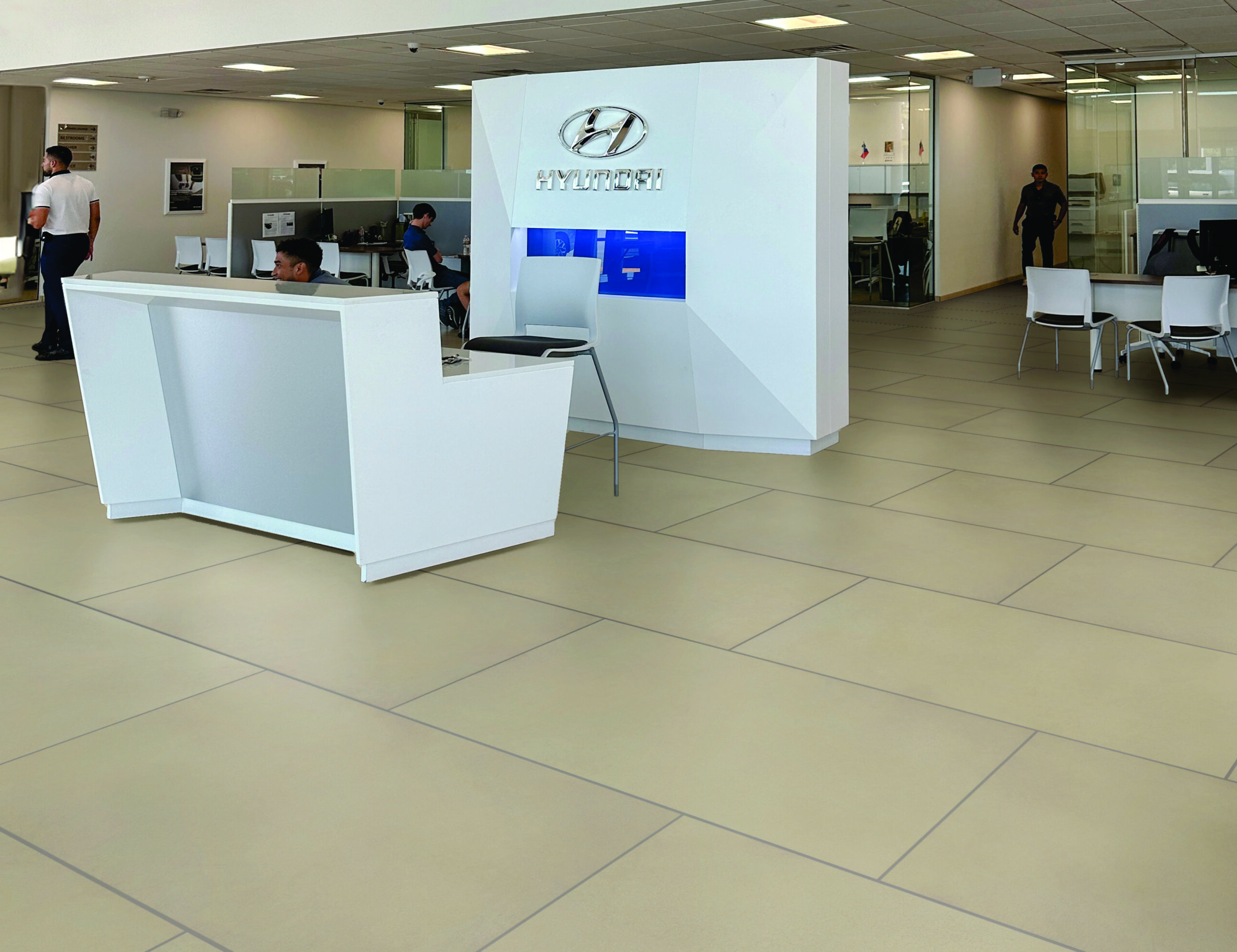

Hyundai approved AutoStoneUSA installed tile
CT-1 Showroom
AmericanHarvest.2
Size: 24" x 48" (stocked)
Clean.Tech - Ultra Cleanable Technology
Finish: BrightFinish | Natural
New CT-1 Large Format 24" x 48" size
Showroom Tile
Now In-Stock!
Why Go Small?
Go BIG with AutoStoneUSA
Hyundai approved AutoStoneUSA installed tile
CT-1 Showroom
AmericanHarvest.2
Size: 24" x 48" (Available Now!)
Clean.Tech - Ultra Cleanable Technology
Finish: BrightFinish | Natural
Hyundai Dealers Prefer
LARGE FORMAT TILE
BIGGER IS BETTER!
MODERN & BEAUTIFUL!
Hyundai GDSI 2.0 Approved Areas for AutoStone USA
AutoStoneUSA tiles are an essential part of Honda image. Together we make automotive retailing & service better.

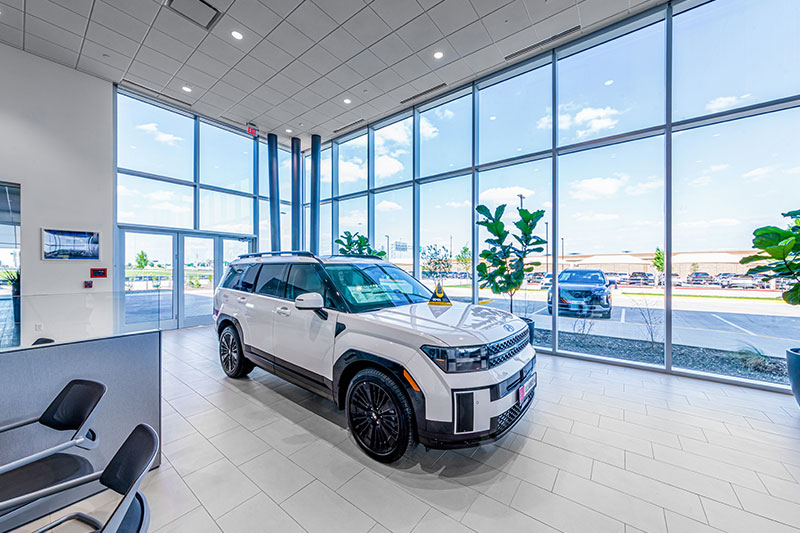

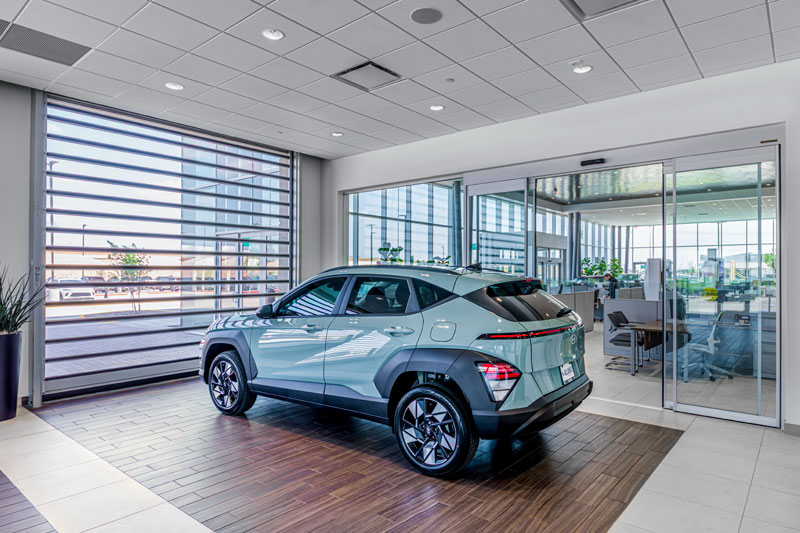

SHOWROOM
Hyundai is building the most exciting retail and service retailing environment in the automotive space. The retail space reflects Hyundai Motor Americas’ (HMA) forward direction, culture, and efforts toward a sustainable and green future. This retail scape reflects the direction of HMA as it is moving to hybrids and electric vehicles. AutoStone USA materials are the right choice for your Hyundai build. AutoStone USA is made in America, manufactured in a factory dedicated to energy efficiency, the elimination of waste and a reduced carbon footprint.

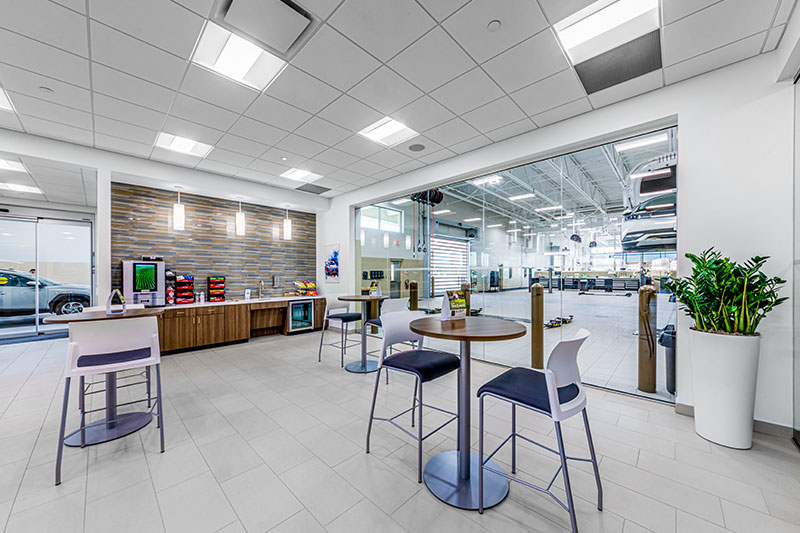

SERVICE RECEPTION
The service reception area and drive are an important space where customers and employees meet. When you look at your floor finish we recommend a PERMANENT tile floor over temporary coatings. You will find the cost difference between tile and temporary coatings makes tile the better choice. Clean, fresh, bright, non-blemished and STF-resistant floors help deliver this positive image. AutoStone floors are designed, engineered, and manufactured to help deliver a great service drive experience. AutoStone floors include our brightfinish, which is a permanent sealant that enhances our impervious (non-absorptive) tile. The bright finish seals the surface micropores, and aids dealerships with daily cleaning practices. AutoStone floors are designed to assist dealers better manage these environments with better products, which can deliver better results!

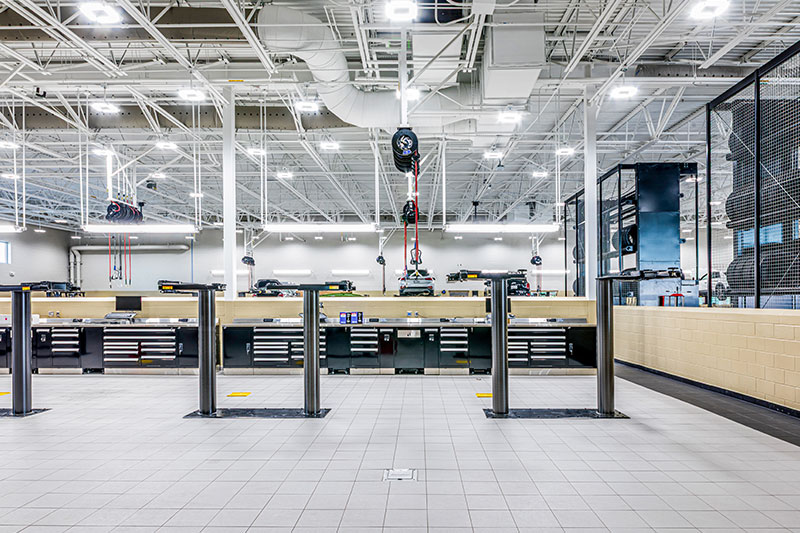

SERVICE WORKSHOP
No other department more profoundly influences the degree of customer satisfaction and advocacy than the service department workshop facility. We offer Hyundai dealers one of three permanent workshop floor choices to choose from, all of which are chemical-resistant, STF-resistant, and supplying a tile finish that dealers can maintain “like-new” for the life of the dealership. When dealers embrace our Culture of Clean (established and proper cleaning practices), Hyundai workshops can look beautiful for the life of the dealership. Hyundai approves AutoStone Floor Systems as a trusted Approved Materials Provider; choose an AutoStone workshop floor, and you will love the results!
CARE AND MAINTENANCE
Welcome to the AutoStoneUSA “Culture of Clean” program which was developed to help your dealership with the best cleaning practices, methods and processes possible. The Hyundai GDSI 2.0 program includes AutoStoneUSA materials in your showroom, customer lounge, customer restrooms, back offices, service drive and possibly your workshop.
Automotive retail and service facilities include two distinct operations under one roof. The nature of the automotive dealership includes spaces where vehicles are driven on floors which track onto the floor all type of elements such as oil, grease, asphalt and other contaminants. In the service drive and workshop, you have a greater exposure to the elements which requires a higher degree of cleaning vigilance. You also service ICE and EV vehicles which have chemicals and liquids which also can contaminate the floors in these areas. We are here to help you keep these areas looking clean, but also safer to walk on for both customers and employees.
AutoStoneUSA is a Hyundai Approved GDSI 2.0 Tile Provider
AutoStoneUSA collaborates as a Hyundai Strategic Partner to assure accuracy and brand program alignment. Elevate your automotive facility by downloading AutoStone’s latest Hyundai brand compliant tile guidebook.
AutoStoneUSA Hyundai

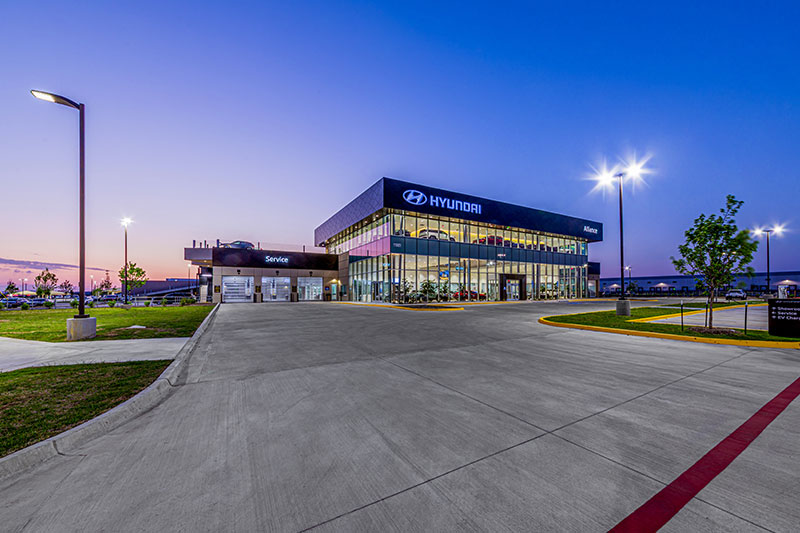

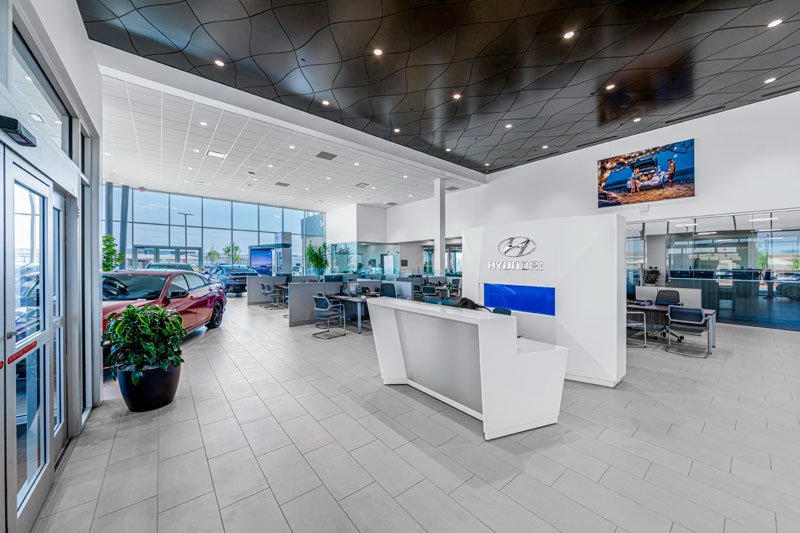

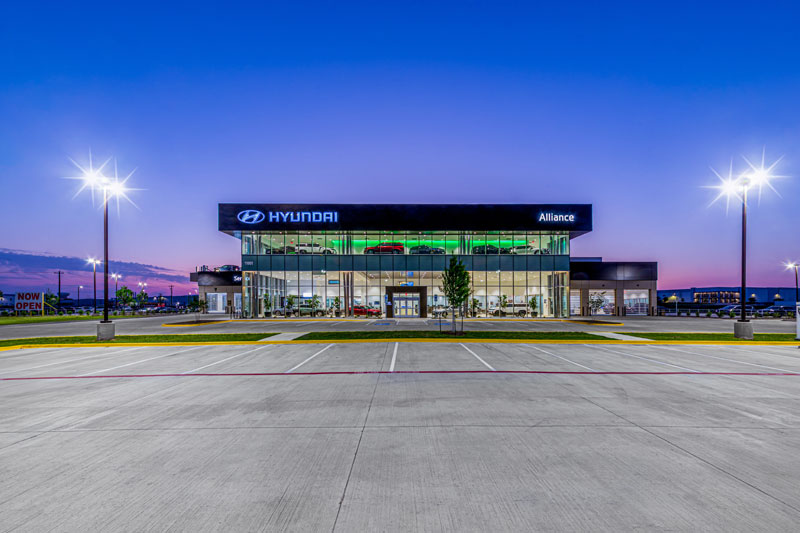

Installation Images
AutoStoneUSA Hyundai New Large Format 24" x 48" Explainer!
QC Tool For Large Format Tile Success!
New GDSI 2.0 Tile Guide!
Did you know?
While the service drive is the smallest footprint of your facility build, the service drive represents the most dynamic and important space in automotive retailing today?
Why AutoStone Tile Is Better Than Epoxy
Reason #1
Reason #2
Reason #3
Reason #4
Hyundai allows dealers the choice of either a permanent floor in the service drive or an epoxy coating. While tile maybe somewhat more expensive on a per square foot basis, it is the best investment you can make in the long run for your facility.
An epoxy coating will soon look worn and weary, and this diminishes the futuristic and service-oriented image of the Hyundai program. In a few short years you will be faced with having to resurface your service drive again, and later again and again.
A permanent tile by AutoStone USA makes the best impression with your customer because it looks beautiful for the life of your dealership. Epoxy coatings wear away and as they degrade from use.
This never-ending cycle of resurfacing is an ongoing cost that you never stop. However, with an AutoStone permanent service drive tile, your investment will last a lifetime. Build best, build once, build with AutoStone USA.
Looking for Hyundai Legacy Tile Products?
AutoStone USA materials are available for Hyundai facilities that need additional
tile materials for repairs and additions. Click the button below.
Hyundai Brand Compliant Program
Below are current Hyundai Approved GDSI 2.0 Materials ready to be installed at your dealership or workshop.
CT-1 SHOWROOM
Technical Specifications
Series: American Made!
Color: American Harvest.2
Finish: Natural | Honed
New Size: 24″x 48″* (U.S. Nominal Dimension)
Size: 12″x 24″* (U.S. Nominal Dimension)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Showroom
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.1 Interior, Dry (ID)
4.1.2 Interior Wet (IW)
Features & Benefits
CTB-1 BASE
Technical Specifications
Series: American Made!
Color: American Harvest.2
Finish: Natural | Honed
Size: 03″x 12″* (U.S. Nominal Dimension)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Showroom
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.1 Interior, Dry (ID)
4.1.2 Interior Wet (IW)
- Note: The CT-2 tile option has been discontinued from the Hyundai program
CT-6 WALNUT

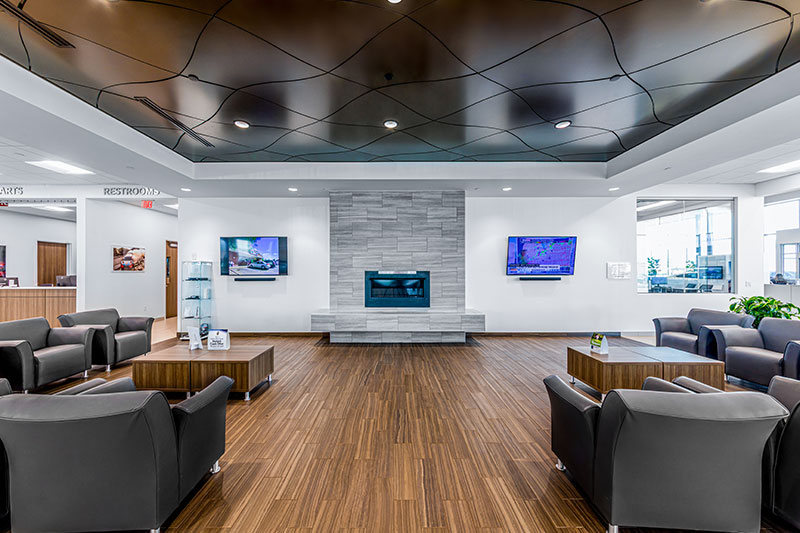

CUSTOMER LOUNGE
Technical Specifications
Series: American Wood
Color: Walnut
Finish: Natural | Honed
Size: 06″x 36″* (U.S. Nominal Dimension)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Customer Lounge
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.1 Interior, Dry (ID)
4.1.2 Interior Wet (IW)
CTB-2 BASECUSTOMER LOUNGE
Technical Specifications
Series: American Made!
Color: American Wood
Finish: Natural | Honed
Size: 06″x 36″* (U.S. Nominal Dimension)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Customer Lounge
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.1 Interior, Dry (ID)
4.1.2 Interior Wet (IW)
EnviroShop12USA & DriveSeries12USA
CT-7 ENHANCED PORCELAIN
ENVIROSHOP12USA
Technical Specifications
Series: Enviroshop12USA
Color: Alloy Grey
Finish: Traction.Brightfinish
Size: 12″x 12″* (U.S. Nominal Dimension)
11 7/8" x 11 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
Features & Benefits
MADE IN USA
CT-8 ENHANCED PORCELAIN
ENVIROSHOP12USA
Technical Specifications
Series: Enviroshop12USA
Color: Carbon Black
Finish: Traction.Brightfinish
Size: 12″x 12″* (U.S. Nominal Dimension)
11 7/8" x 11 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Workshop & Service Drive
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
Features & Benefits
MADE IN USA
CT-7 ENHANCED PORCELAIN
DRIVESERIES12USA
Technical Specifications
Series: DriveSeries12USA
Color: Alloy Grey
Finish: Traction3L.Brightfinish
Size: 12″x 12″* (U.S. Nominal Dimension)
11 7/8" x 11 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service Drive
Workshop
Exterior
Oil & Lube
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
CT-8 ENHANCED PORCELAIN
DRIVESERIES12USA
Technical Specifications
Series: DriveSeries12USA
Color: Carbon Black
Finish: Traction3L.Brightfinish
Size: 12″x 12″* (U.S. Nominal Dimension)
11 7/8" x 11 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service Drive
Workshop
Exterior
Oil & Lube
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
eShop8USA & DriveSeries8USA
CT-7 ALLOY GREY
ESHOP8USA
Technical Specifications
Series: eShop8USA
Color: Alloy Grey
Finish: Super.Grip.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimension)
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service Drive
Workshop
Exterior
Oil & Lube
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
CT-8 CARBON/GENESIS BLACK
ESHOP8USA
Technical Specifications
Series: eShop8USA
Color: Carbon/Genesis Black
Finish: Super.Grip.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimension)
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service Drive
Workshop
Exterior
Oil & Lube
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
CT-7 ALLOY GREY
DRIVESERIES8USA
Technical Specifications
Series: DriveSeries8USA
Color: Alloy Grey
Finish: Super.Grip3L.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimension)
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service Drive
Workshop
Exterior
Oil & Lube
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA
CT-8 CARBON/GENESIS BLACK
DRIVESERIES8USA
Technical Specifications
Series: DriveSeries8USA
Color: Carbon/Genesis Black
Finish: Super.Grip3L.Brightfinish
Size: 8″x 8″* (U.S. Nominal Dimensions
7 7/8" x 7 7/8" (Actual Size)
*Dimension may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service Drive
Workshop
Exterior
Oil & Lube
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.3 Interior, Wet Plus (IW+)
4.1.4 Exterior Wet (EW)
4.1.5 Oils/Grease (O/G)
Features & Benefits
MADE IN USA

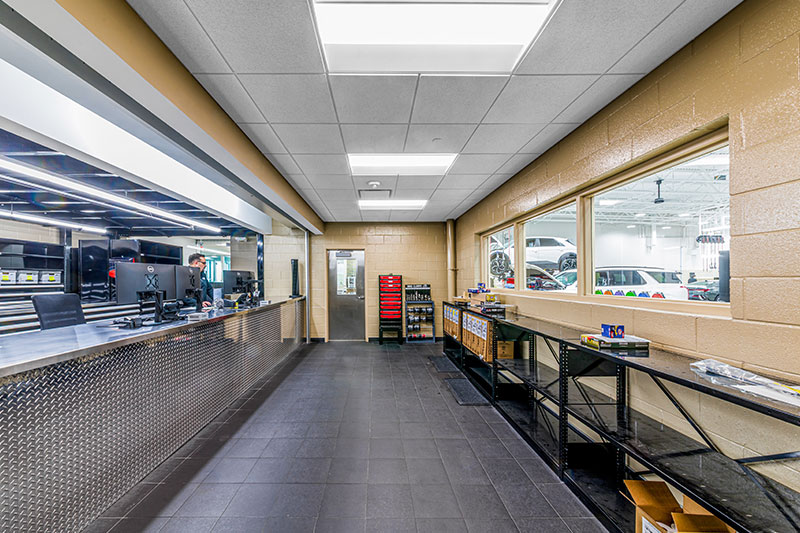

FLOOR & WALL PANELS
GREY CONCRETE
RESILIENT ARMOUR
Technical Specifications
Series: Resilient Armour
Color: Grey Concrete
Size: 18″x 36″ Panel
Thickness: 3mm
Facility Location
Facility Locations:
Parts
Storage Areas
Janitorial
Lunch & Break Rooms
Tech Locker Room
(Floors & Walls)
Wainscoting for Hallways,
WorkShop Areas & All Back-Office Areas
Features & Benefits
SURFACE
CAMOUFLAGE
SCRATCH RESISTANT
SURFACE
CHEMICAL RESISTANT
SURFACE
IMPACT
GUARD SURFACE
Learn more about Resilient Armour
LVT large format panels by clicking on the logo below.
FLOOR & WALL PANELS
GREY CONCRETE
RESILIENT ARMOUR
Technical Specifications
Series: Resilient Armour
Color: Deep Concrete
Size: 18″x 36″ Panel
Thickness: 3mm
Facility Location
Facility Locations:
Parts
Storage Areas
Janitorial
Lunch & Break Rooms
Tech Locker Room
(Floors & Walls)
Wainscoting for Hallways,
WorkShop Areas & All Back-Office Areas
Features & Benefits
SURFACE
CAMOUFLAGE
SCRATCH RESISTANT
SURFACE
CHEMICAL RESISTANT
SURFACE
IMPACT
GUARD SURFACE
Learn more about Resilient Armour
LVT large format panels by clicking on the logo below.
RESTROOM & TECH WALLS
SIMPLY WHITE
Technical Specifications
Series: ShopWall
Color: Simply White
Finish: Satin
Size: 12″ x 24″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Tech Locker Room & Restroom Walls
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)
RESTROOM & TECH WALLS
STORMY GREY
Technical Specifications
Series: ShopWall
Color: Stormy Grey
Finish: Glossy
Size: 12″ x 24″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Tech Locker Room & Restroom Walls
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)
SUBWAY TILE
RESTROOM & TECH WALLS
WHITE
Technical Specifications
Series: ShopWall
Color: White
Finish: Glossy
Size: 03″ x 06″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Tech Locker Room & Restroom Walls
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)

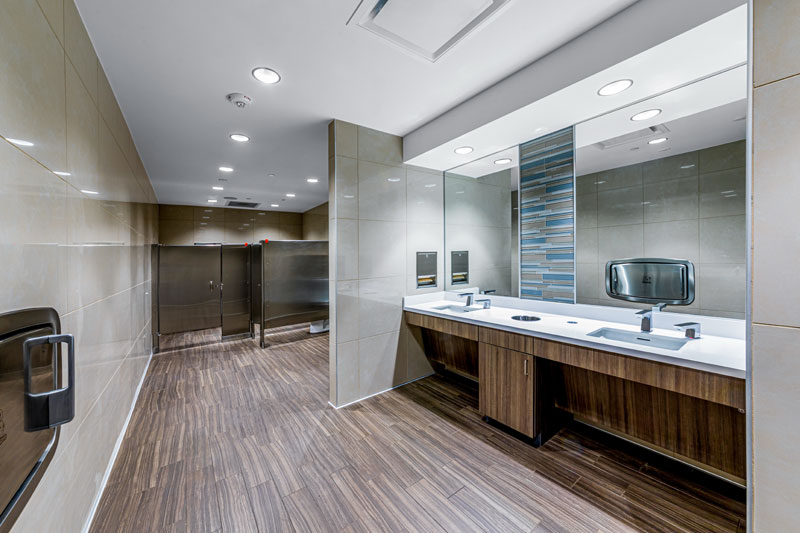

SERVICE & TECH RESTROOM AREAS
WALL TILES
GRANITA GREY
Technical Specifications
Series: ShopWall
Color: Granita Grey
Finish: Satin
Size: 8″ x 8″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service & Tech Restroom Areas
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)
SERVICE & TECH RESTROOM AREAS
WALL TILES
ANTHRACITE GREY
Technical Specifications
Series: ShopWall
Color: Anthracite Grey
Finish: Satin
Size: 8″ x 8″* (U.S. Nominal Dimension)
*Dimensions may vary within (+) or (-) 2mm in sizing
Facility Location
Facility Locations:
Service & Tech Restroom Areas
Environment of Use
Surface Traction Conforms To:
ANSI A326.3 Use Category
4.1.2 Interior Wet (IW)
Ready to Reserve Hyundai Materials?
AutoStone offers the best price for your tile program and guaranteed on-time delivery.
AutoStoneUSA Hyundai GDSI 2.0 Documents
Why AutoStoneUSA Are Hyundai GDSI 2.0 Experts
Service And WorkShop
Approved
AutoStone supplied service and workshop floor tiles are approved for use in your Hyundai dealership. AutoStone driveseries, enviroshop and clinkershop floor systems are also approved for use in your service drive and workshop. When it comes to your service department, we always recommend a permanent floor system. AutoStone once, AutoStone forever is our motto. Build a better service facility that is a safer, cleaner, and a better environment to service Hyundai vehicles.
Precise Grout Alignment
Exceptional quality is assured with every AutoStone produced and supplied Hyundai tile. AutoStone supplied service drive and workshop floor systems have a tight calibrated tolerance to assure tight grout alignment as well. Less grout = less grime. AutoStone is your best Hyundai choice!
Permanent Sealant Resists permanent Stains
AutoStone’s brightfinish ultra-cleanable technology surface finish is an optional surface finish option. The brightfinish resists permanent stains and assists in the removal of grout residue during installation and aids cleaning practices. The brightfinish will deliver brighter, fresher, and cleaner environments.
Inventory, Materials and Logistics Experts
AutoStone is the nation’s automotive-industry floor system specialist. In addition to supporting Hyundai, we support ten additional automotive brands. We inventory over one million square feet of brand specific floor products. Not only do we have the largest domestic inventory in the country, we are also the best resource to support your project. With AutoStone, your Hyundai dealership project will be supported with materials that are actually available, when you need them.
STF (slip, trip and Fall) Risk - Environments
AutoStone proposes our driveseries as one of our three workshop floor systems for Hyundai service drive and workshop facilities. This service and workshop floor system has been successfully installed in a number of Hyundai installations and Hyundai dealers love the STF benefits, which reduce their exposure to customer and employee injury in the service drive and/or workshop.
Permanent Sealant Enhances Impervious surface
All three AutoStone service drive and workshop floor systems proposed for use in an Hyundai dealership have our brightfinish technology. The brightfinish technology enhances our impervious tile surface with a permanent sealant baked-in during the manufacturing process. Permanent service drive and workshop floors can be kept in “like-new” condition for the life of the dealership with regularly scheduled and proper cleaning practices.
Competitor Products Darken over time
AutoStone service drive and workshop tiles are manufactured with our brightfinish to resist rubber-transfer, and surface stains. While other clinker tile manufacturers state that their tile will “naturally patina” over time, our workshop tiles can be kept clean and “like-new” with regularly scheduled and proper cleaning maintenance. AutoStone service and workshop floor systems are designed for the automotive service model marketplace.
AutoStone supports Hyundai with
culture of clean
Clean facilities are an essential Hyundai brand requirement. An Hyundai retail and service facility should reflect a clean upscale environment to reflect the quality of the Hyundai brand. The service reception and service workshop are equally important in delivering exceptional service which caters to each Hyundai customer. Floors should be clean, bright and be kept in a “like-new” condition for the life of the dealership. AutoStone floors are designed to help you keep and maintain the original appearance with regularly scheduled cleaning practices. Let AutoStone help you with your cleaning and maintenance program.
Point of Contact
Ready to Order? Give us a Call.
AutoStone:
214-393-4875
Email:
hyundai@autostoneusa.com
